JM32750HT

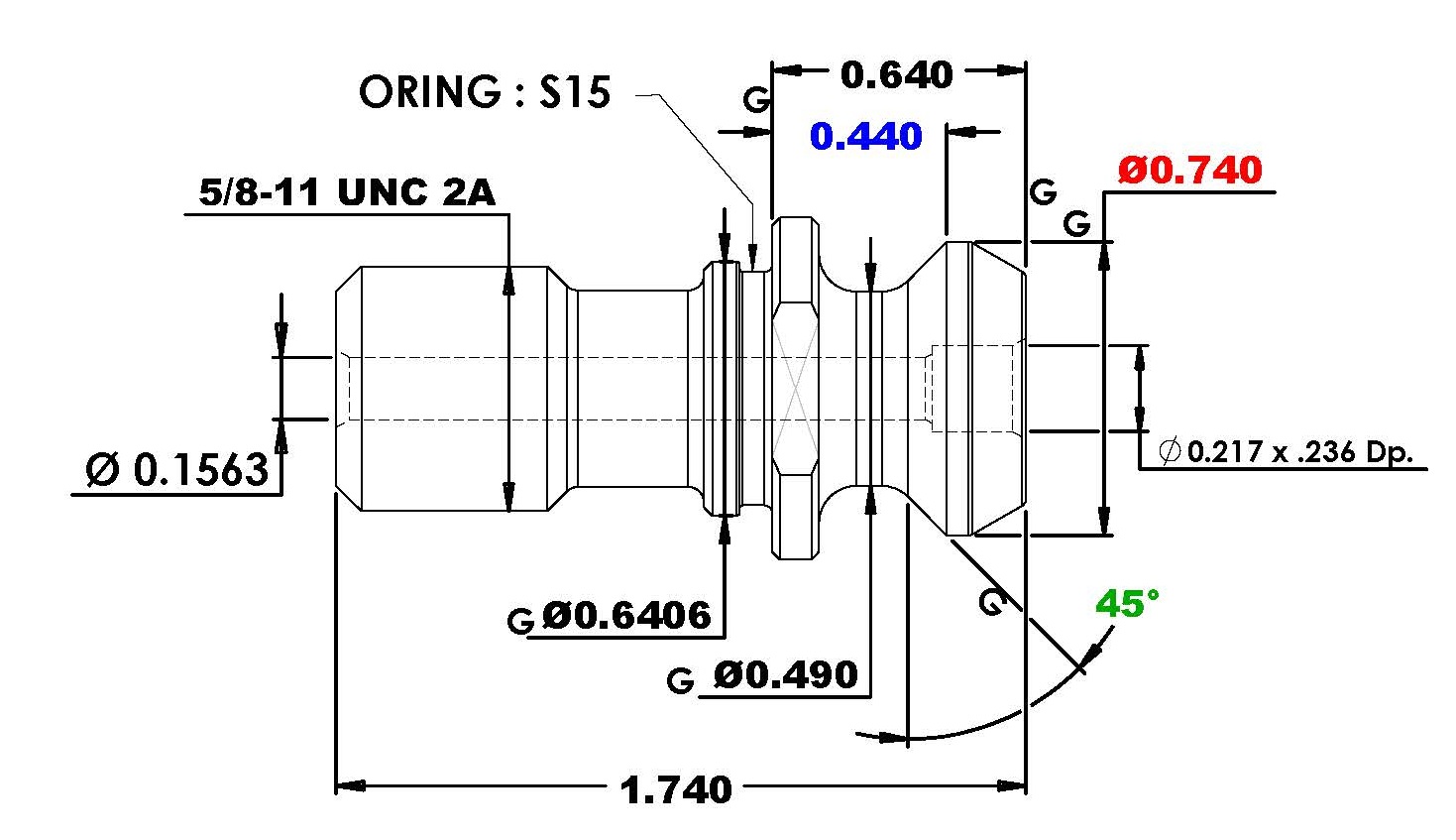

High Torque© (HT) retention knob, CAT40; 5/8"-11, 45°, Coolant through; O-Ring(s) included; Replaces JM32750
Retention Knob Information and Installation (PDF)
Retention Knob Installation Video
| Category: | Retention Knobs |
| Thread Size: | .625-11 |
| Angle: | 45 |
| Knob Diameter: | 0.740 |
| L1 Length: | 0.4400 |
| L2 Length: | 0.640 |
| Flange Thickness: | 0.120 |
| Hole Diameter: | 0.156 |
| Knob Side O-Ring: | .217X.236 |
| Neck Diameter: | 0.490 |
| Pilot Diameter: | 0.641 |
| Shoulder Diameter: | 0.862 |
| Wrench Flat Diameter: | 0.765 |
| Socket Part #: | RKW40 |
| Number: | JM32750HT |
| Solid Version: | JM31226-HHT, JM31226-HHTHS, JM11123HS, JM11123HTHS |
| Thread Side O-Ring: | S-15 |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| For Machines (see disclaimer)*: | Okuma |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
