Retention Knob Sockets
Sockets aid in the installation of retention knobs and pull studs. By using a socket and a torque wrench the ideal tightness is achieved, without rounding off the corners of the retention knob. Sockets are designed to work when flats are up to .020 under wrench max size.
| Size Taper | Drive Socket Size | Retention Knob Type | Thread Size | Shoulder Diameter Max | Wrench Size Max | JM Part Number |
| 30 | 3/8 IN | ANSI, JMTBA, DIN | 1/2-13 UNC, & M-12 | 0.655 0.675 0.675 |
0.535 0.511 0.556 |
RKW30 RKW30M RKW30D |
| 40 | 1/2 IN | ANSI, JMTBA, ISO TYPE A, DIN, ISO TYPE B | 5/8-11 UNC & M-16 | 0.944 0.894 |
0.755 0.711 |
RKW40 RKW40M |
| 45 | 1/2 IN | ANSI, JMTBA, ISO, DIN | 3/4-10 UNC & M-20 | 1.205 1.225 |
1.004 0.950 |
RKW45 RKW45M |
| 50 | 1/2 IN | ANSI, JMTBA, ISO TYPE A & B, DIN | 1.00-8 UNC & M-24 | 1.450 1.500 |
1.255 1.185 |
RKW50 RKW50M |
Purchase retention knob sockets
Tool Setters
The Smart Tool Setter's precise and heavy duty construction make the tool setter very rigid and able to endure extreme forces without causing any damage to tools or the Smart Tool Setter. The multi-functioning and positioning of the Smart Tool Setter allow the operator to switch quickly and easily from one operation to another without loss of time.
- Multi-Functional
- Multi-Position Setting
- Toolholder Taper Protected from Chips and Scratches
- Holds CAT, BT or HSK Toolholders
- Heavy Duty Construction
- Precise Quality and Workmanship
- Quick Toolholder Setting
- Quick Lock Toolholder
Purchase the Smart Tool Setter

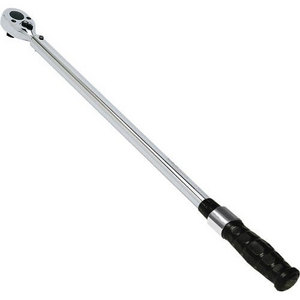

Adjustable Torque Wrenches
- Dual scale, calibrated dual direction
- Positive lock with spring loaded pull down lock ring
- Fast, accurate and easy to set
- Easy-to-read laser marked scale
- Most feature quick release buttons which provide good socket retention as well as easy socket removal
- Ergonomic comfort-grip
- Accuracy: +/- 3% CW +/- 5% CCW of indicated value, CW, from 20% to 100% of full scale
- Meets or exceeds ASME B107.14-2004, ISO 6789 standards
- Individually serialized with matching certificate of calibration traceable to N.I.S.T.
