JM32114BHTHS

Home   ›   Shop   ›   JM32114BHTHS

High Torque© High Strength (HTHS) retention knob, CAT 40, 5/8"-11; 90°, Solid; Made from 9310H steel, 40% stronger; replaces JM321114B

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs

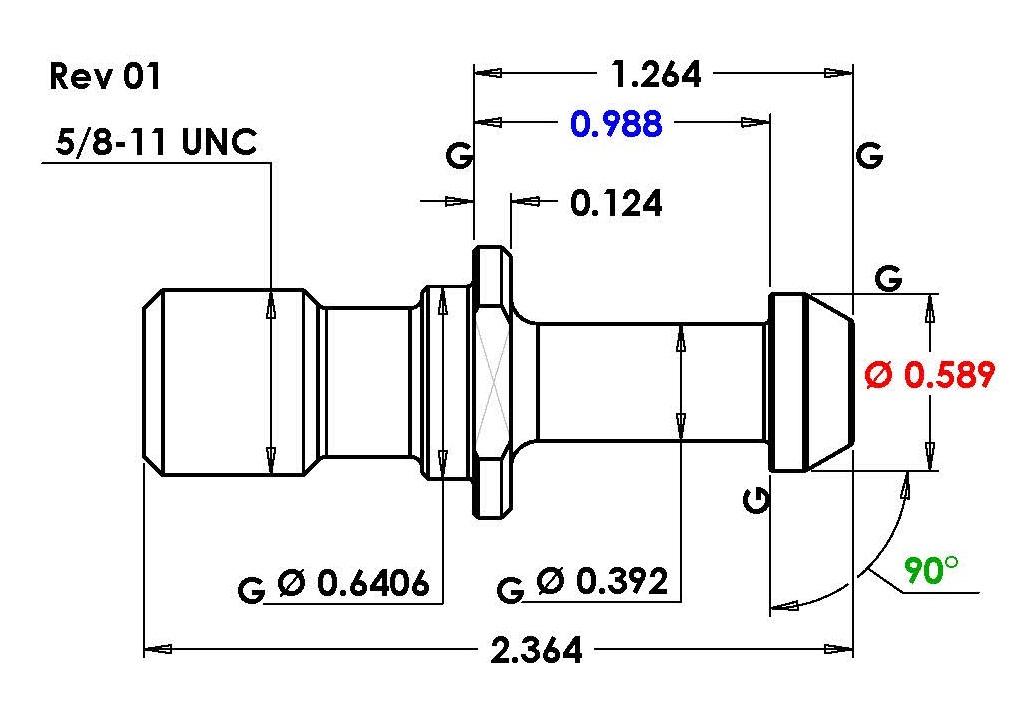

Thread Size: .625-11
Angle: 90
Knob Diameter: 0.589
L1 Length: 0.9880
L2 Length: 1.264
Flange Thickness: 0.124
Hole Diameter: -
Neck Diameter: 0.392
Pilot Diameter: 0.641
Shoulder Diameter: 0.903
Wrench Flat Diameter: 0.743
Socket Part #: RKW40
Number: JM32114BHTHS
Coolant Version: JM35030HT, JM35030HTHS
Alternate Part: JM32114BHTHS, JM31114BHTHS(4)- (4) Note difference in flange thickness size
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.

WARNING: The steel alloy used in this product contains chromium and nickel. This product can expose you to chemicals including chromium and nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
