JM31818A

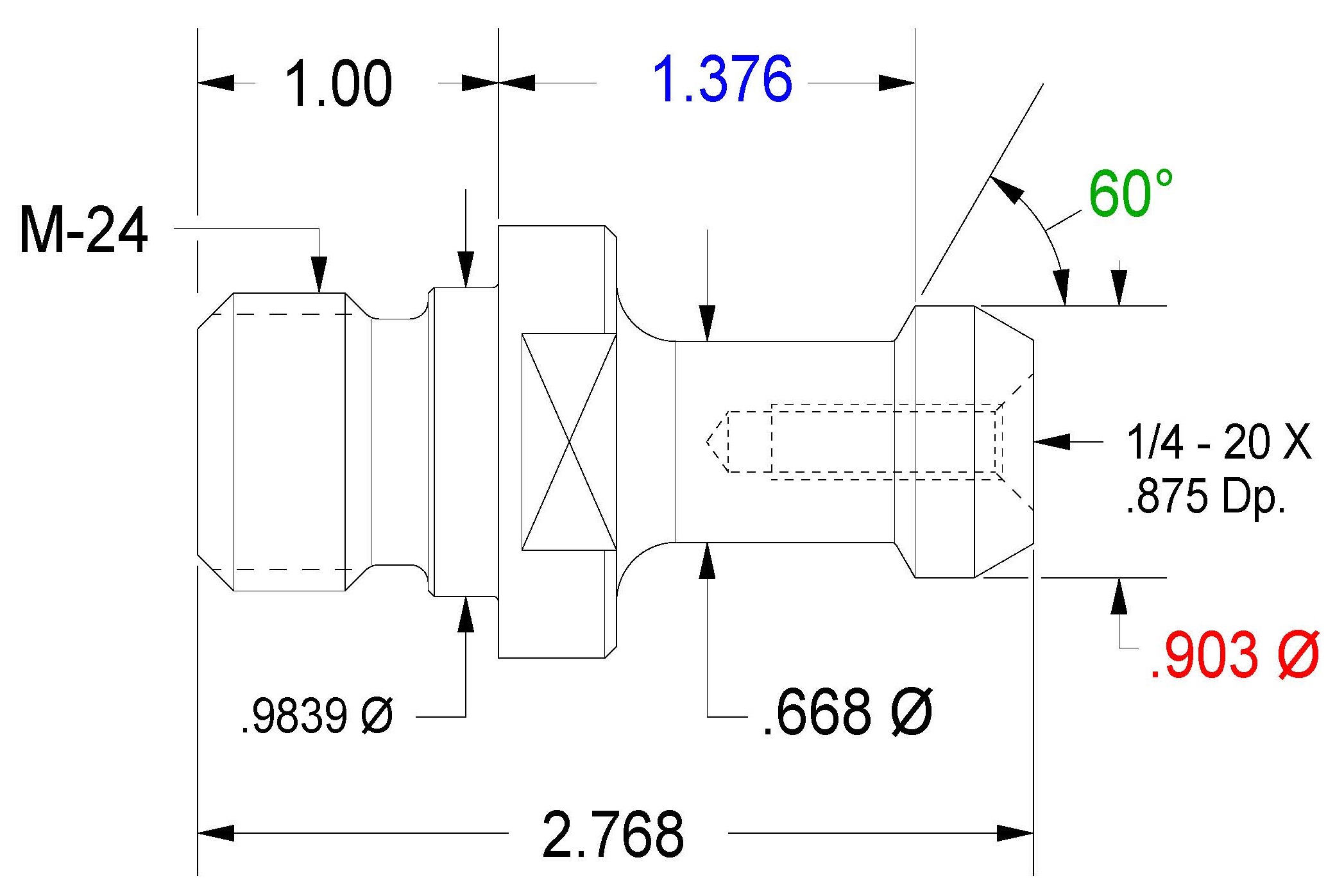

Standard retention knob, BT50, M24X3, 60°, Coolant through
Retention Knob Information and Installation (PDF)
Retention Knob Installation Video
| Category: | Retention Knobs |
| Thread Size: | M24X3.0 |
| Angle: | 60 |
| Knob Diameter: | 0.903 |
| L1 Length: | 1.3760 |
| L2 Length: | 1.770 |
| Flange Thickness: | 0.392 |
| Hole Diameter: | 1/4"X20 |
| Knob Side O-Ring: | * 1/4X20 THD .201 |
| Neck Diameter: | 0.668 |
| Pilot Diameter: | 0.984 |
| Shoulder Diameter: | 1.492 |
| Wrench Flat Diameter: | 1.175 |
| Socket Part #: | RKW50M |
| Number: | JM31818A |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
