JM31677HT

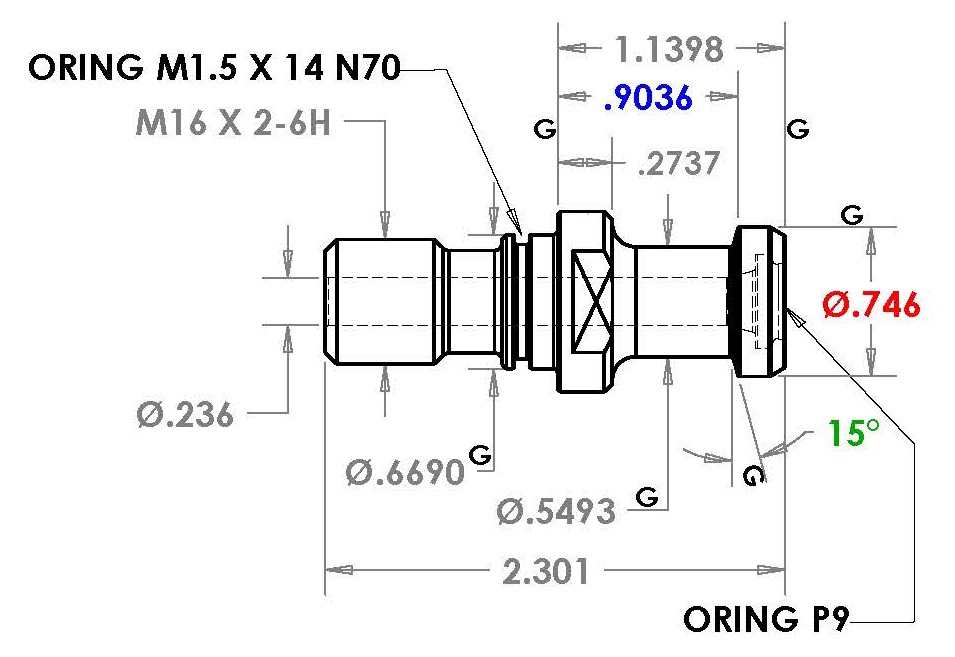

OBSOLETE-High Torque© (HT) retention knob, BT40; M16X2, 15°, Coolant through; O-Rings included; see JM31677HTHS
| Category: | Retention Knobs |
| Thread Size: | M16X2.0 |
| Angle: | 15 |
| Knob Diameter: | 0.746 |
| L1 Length: | 0.9036 |
| L2 Length: | 1.140 |
| Flange Thickness: | 0.274 |
| Hole Diameter: | 0.236 |
| Knob Side O-Ring: | P-9 |
| Neck Diameter: | 0.549 |
| Pilot Diameter: | 0.669 |
| Shoulder Diameter: | 0.903 |
| Wrench Flat Diameter: | 0.745 |
| Socket Part #: | RKW40 |
| Number: | JM31677HT |
| Alternate Part: | JM31677HTHS |
| Thread Side O-Ring: | ORM0150-01400-N70 |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| Big Kaiser: | 40PH11 |
| For Machines (see disclaimer)*: | Yasda |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
