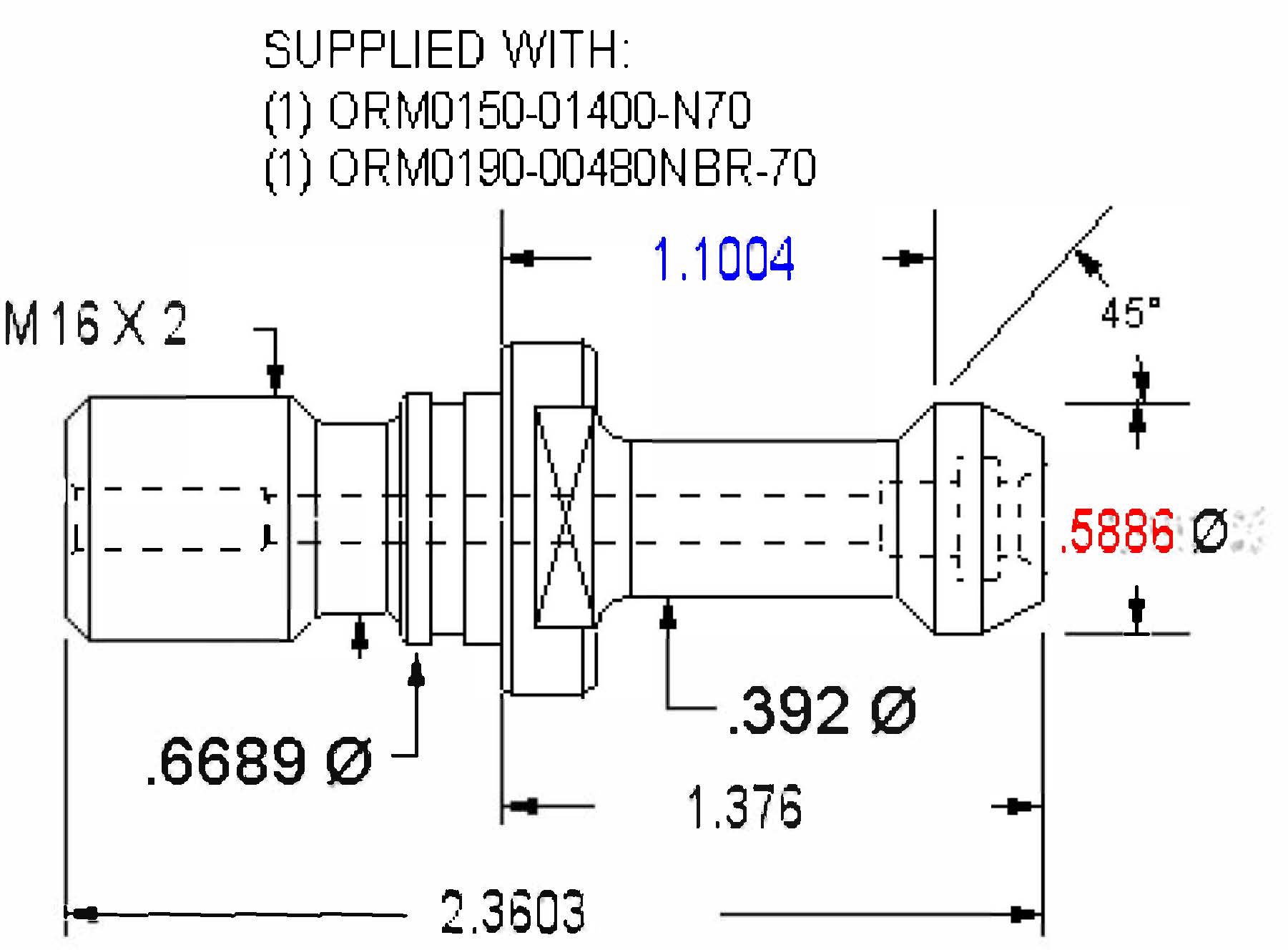

JM31150
OBSOLETE-Standard retention knob, BT40, M16x2, 45°; Coolant through; O-Rings included.
| Category: | Retention Knobs |
| Thread Size: | M16X2.0 |
| Angle: | 45 |
| Knob Diameter: | 0.589 |
| L1 Length: | 1.1000 |
| L2 Length: | 1.376 |
| Flange Thickness: | 0.234 |
| Hole Diameter: | 0.120 |
| Knob Side O-Ring: | ORM0190-00480NBR-70 |
| Neck Diameter: | 0.394 |
| Pilot Diameter: | 0.669 |
| Shoulder Diameter: | 0.902 |
| Wrench Flat Diameter: | 0.074 |
| Socket Part #: | RKW40 |
| Number: | JM31150 |
| Thread Side O-Ring: | ORM0150-01400-N70 |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
| Big Kaiser: | P40T-1H4 |
| For Machines (see disclaimer)*: | Tongtai |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
