JM17123MHT

Home   ›   Shop   ›   JM17123MHT

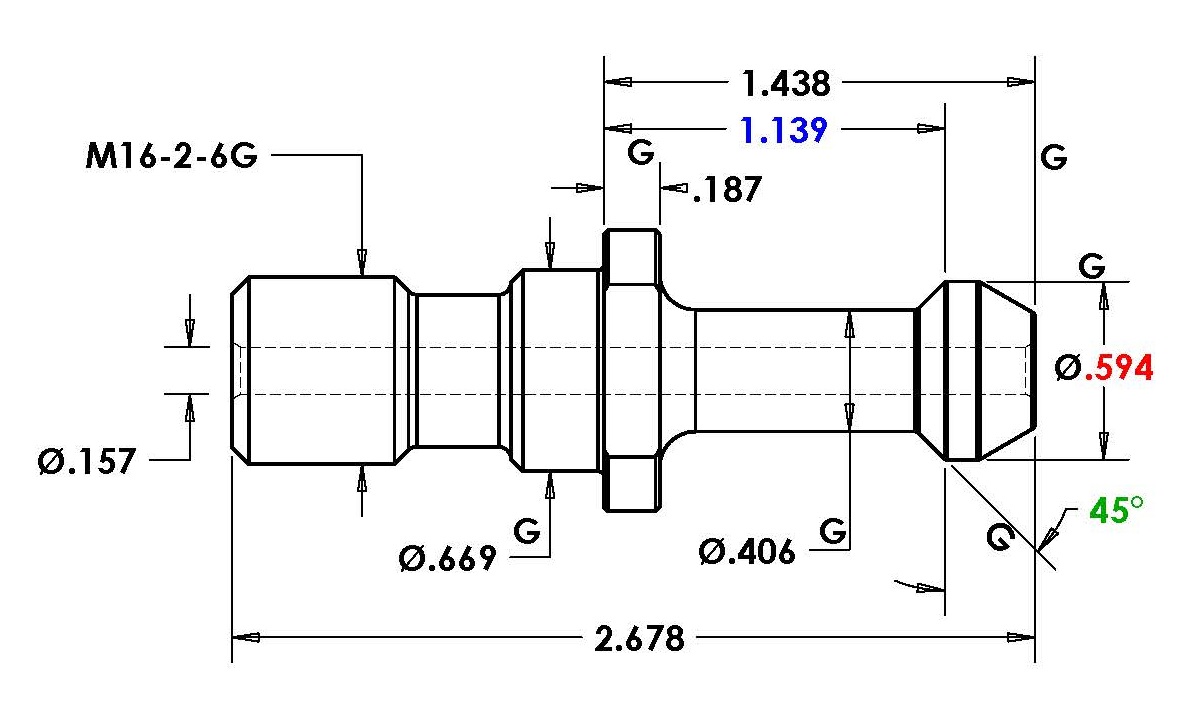

High Torque© (HT) retention knob, CAT40; M16X2, 45°, Coolant through

Retention Knob Information and Installation (PDF)

Retention Knob Installation Video

Category: Retention Knobs
Thread Size: M16X2.0
Angle: 45
Knob Diameter: 0.594
L1 Length: 1.1390
L2 Length: 1.438
Flange Thickness: 0.187
Hole Diameter: 0.157
Neck Diameter: 0.406
Pilot Diameter: 0.641
Shoulder Diameter: 0.875
Wrench Flat Diameter: 0.688
Socket Part #: RKW40M
Number: JM17123MHT
Country of Origin: USA

This knob is a replacement for the following parts:

ManufacturerPart Number
For Machines (see disclaimer)*: Cin/Milacron

* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
