HP71134HTHS
Magnetic Particle tested and certified, High Torque© High Strength (HTHS) Retention Knob, CAT45; 3/4-10; 15°, Coolant through
Retention Knob Information and Installation (PDF)
Retention Knob Installation Video

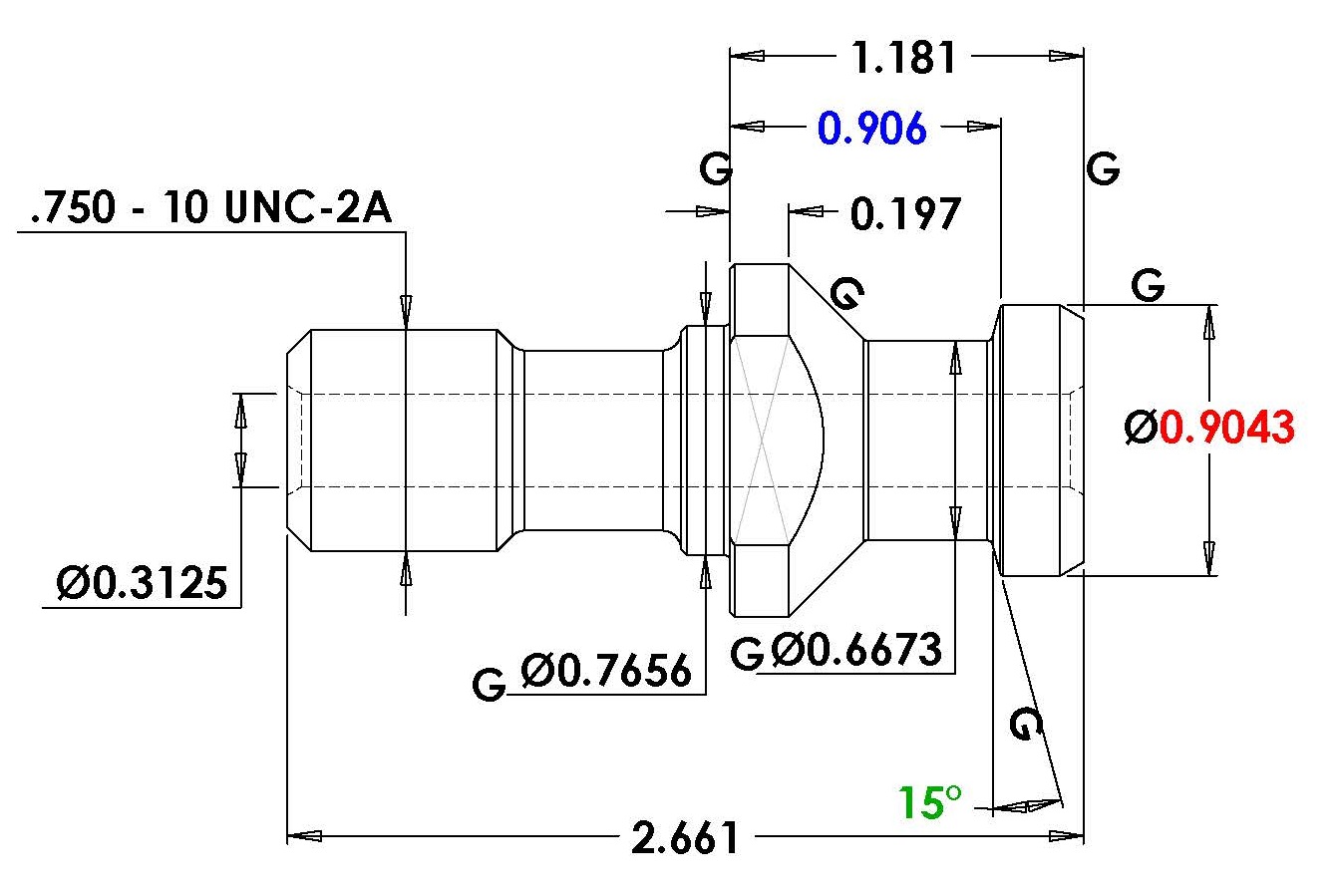

| Category: | Retention Knobs |
| Thread Size: | .750-10 |
| Angle: | 15 |
| Knob Diameter: | 0.904 |
| L1 Length: | 2.6610 |
| L2 Length: | 1.181 |
| Flange Thickness: | 0.197 |
| Hole Diameter: | 3.125 |
| Neck Diameter: | 0.667 |
| Pilot Diameter: | 0.761 |
| Shoulder Diameter: | 1.178 |
| Wrench Flat Diameter: | 0.945 |
| Socket Part #: | RKW45M |
| Number: | HP71134HTHS |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
