HP32450HT

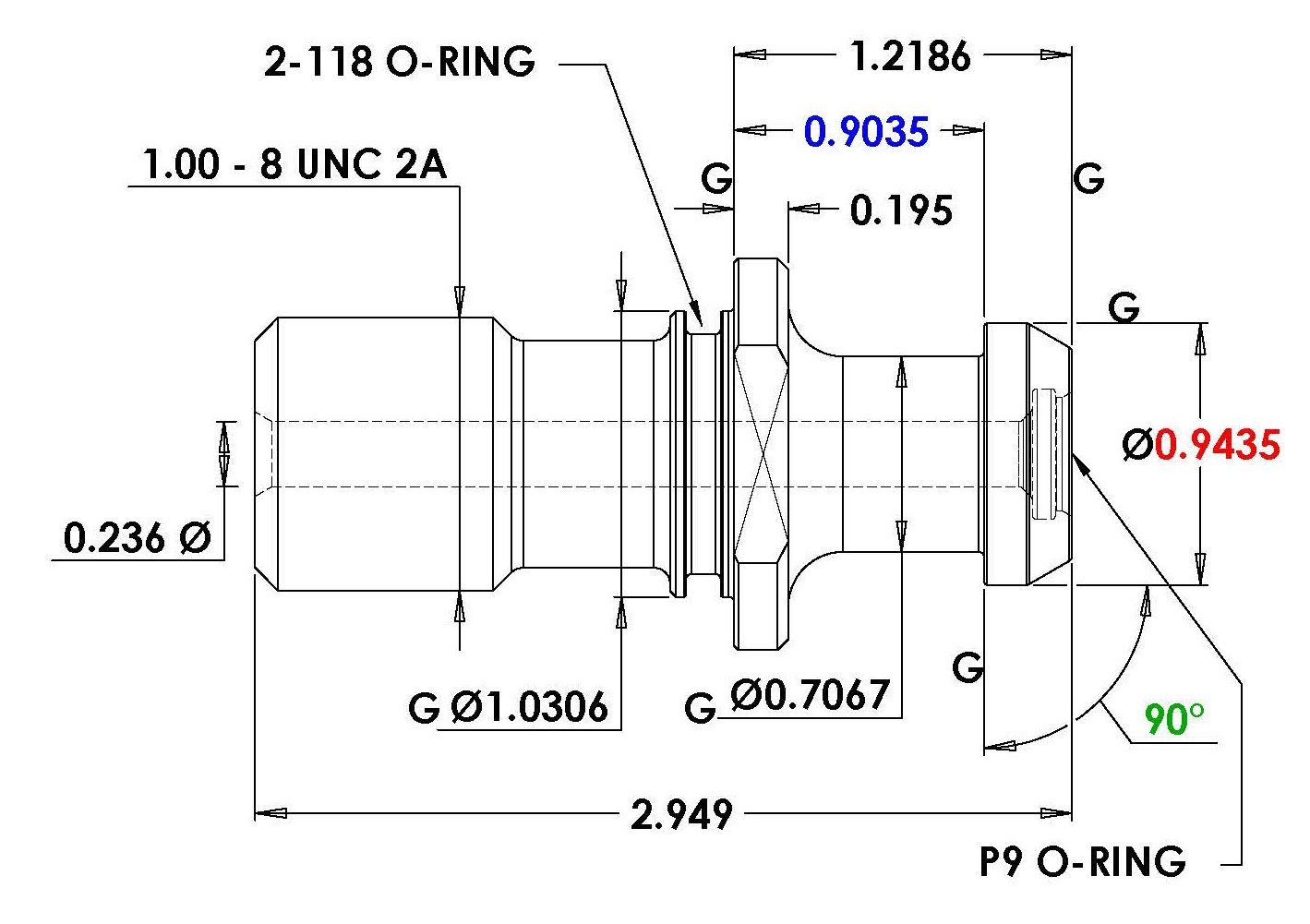

Magnetic Particle tested and certified, High Torque© (HT) Retention Knob, CAT50; 1"-8; 90°, Coolant through
Retention Knob Information and Installation (PDF)
Retention Knob Installation Video
| Category: | Retention Knobs |
| Thread Size: | 1.00-8 |
| Angle: | 90 |
| Knob Diameter: | 0.944 |
| L1 Length: | 0.9035 |
| L2 Length: | 1.219 |
| Flange Thickness: | 0.195 |
| Hole Diameter: | 0.236 |
| Knob Side O-Ring: | P-9 |
| Neck Diameter: | 0.707 |
| Pilot Diameter: | 1.031 |
| Shoulder Diameter: | 1.415 |
| Wrench Flat Diameter: | 1.177 |
| Socket Part #: | RKW50M |
| Number: | HP32450HT |
| Country of Origin: | USA |
This knob is a replacement for the following parts:
| Manufacturer | Part Number |
* Retention knobs are not interchangeable. Machines are only given as a reference, JMPP makes no guarantee this is the correct knob for your machine. Please call us at 1-800-322-7750 or email sales@jmperformanceproducts.com for knob identification help.
